Hydraulic Training Simulator

We offer a variety of available models of our standard trainer to suit your budget. If you are not a school and would like an instructor to train your students with the trainer you buy, that can be arranged. (Email for Details) The pictures below may or may not match your supplied model. Please call or email us for the exact picture and details of the trainer based on your needs.

General description:

We use a variety of Mfg. products, such as Rexroth, Parker, Vickers, Sun Valves, and more. We are not tied down to any one Mfg. This Variety enables your students to see real-world valves that are common in most industry applications. If you would like to customize your Simulator to include a specific brand of Valve, Cylinder, or other peripherals, let us know and we can design your order around that.

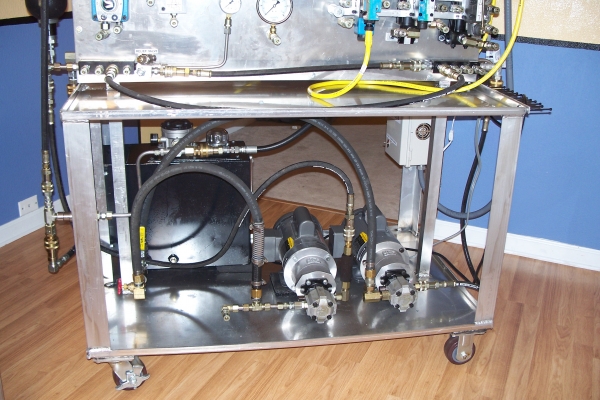

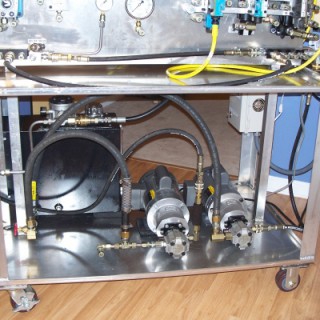

Customizable Hydraulic Trainer

Our Hydraulic trainer can simulate a multitude of circuits while giving access to built-in troubleshooting features. The units can simulate Aeration and Cavitation. Trainers can come one-sided or double-sided. One side can accommodate up to 4 students, or 8 students for 2 sides.

Trainer Sides

We provide a workbook to guide students and instructors through many circuits (over 30) that can be performed on the trainers. It is designed for instruction on basic system design and troubleshooting of hydraulic systems. Also, a complete book is included that informs students of factory specifications, performance, and operation of each component paired with the trainer. The labs range in difficulty from simple to very complex. The instructor can determine which labs to utilize, depending on their students' abilities.
Doorway Hydraulic Trainer Simulator Traning



Video Presentations Various Trainer Models























Our standard unit comes completely tested and assembled and includes these standard components:

(For Double-Sided Trainers double the components below. Train up to 4 people per side!)

  • Electrical Control Box includes all switches,  Driver Card with joy stick and 24 volt power supply
  • POWER UNITS: 120 volt 1 phase, 2 GPM gear pump, double side includes a 3 gpm pressure compensated pump
  • 9 gal Reservoir W/ filter and sight glass
  • Electronically adjusted PROPORTIONAL  Control valve with Joy stick (ramp,dither,gain adjustments)
  • 4 pcs. SUBPLATES
  • 1 pc. D03 SOLENOID VALVE 4 way
  • 1 pc. SOLENOID valve 2 way
  • 2 manually operated D03 directional control valves
  • Counterbalance Valve
  • Temperature and Pressure compensated flow control
  • Relief Valve
  • Pilot operated check valve
  • Sequence Valve
  • Pressure Reducing Valve
  • 2 mounted gauges
  • Hydraulic Motor W/ Brake
  • Flow meter with Flow Alert
  • Rotary Actuator
  • Roller actuated 4 way directional valve
  • 3 pcs. Hydraulic cylinders. (one simulates load)
  • 2 pcs. Porting blocks
  • Accumulator
  • Accumulator Safety Valve
  • COUPLINGS  zero leak
  • FITTINGS
  • HOSES



Picture Supplied

Components, which are shipped loose:

  • 1 Additional Solenoid Valve with different Spool
  • Check Valve
  • Standard Flow control
  • Needle Valve
  • 4 gauges with mounted couplings
  • 4 tees with mounted couplers
  • Shuttle valve
  • DUE to rising prices I can no longer post prices, please contact us for a quote
